Seven restroom accessory CAD blocks: a parametric wall mirror 18 to 72in wide and 1in deep, a 34x36in fold-down baby changing table drawn deployed with its stowed outline dashed, a 12x6in double-roll toilet paper dispenser, a 12x10in warm-air hand dryer, an 11x9in paper towel dispenser, an 18in wall-hung urinal privacy screen whose depth decides whether ADA 605.3 asks for 30 or 36in of clear floor, and a 6x1in room identification sign plate. The fixtures a toilet room is required to have and that no drawing could show until now - each drawn in plan to scale in inches and free to download as DXF.
7 blocks, 7 downloads on this page. DXF R2018, drawn in inches. Free, no signup.
DWG (R2000, converted from the DXF). PNG is the plan-view preview.
| Plan footprint (W x H) | 36in x 1in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-center on wall line (reflecting surface faces +Y) |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 36in | 18in–72in |
| Depth | 1in | 0.75in–2in |

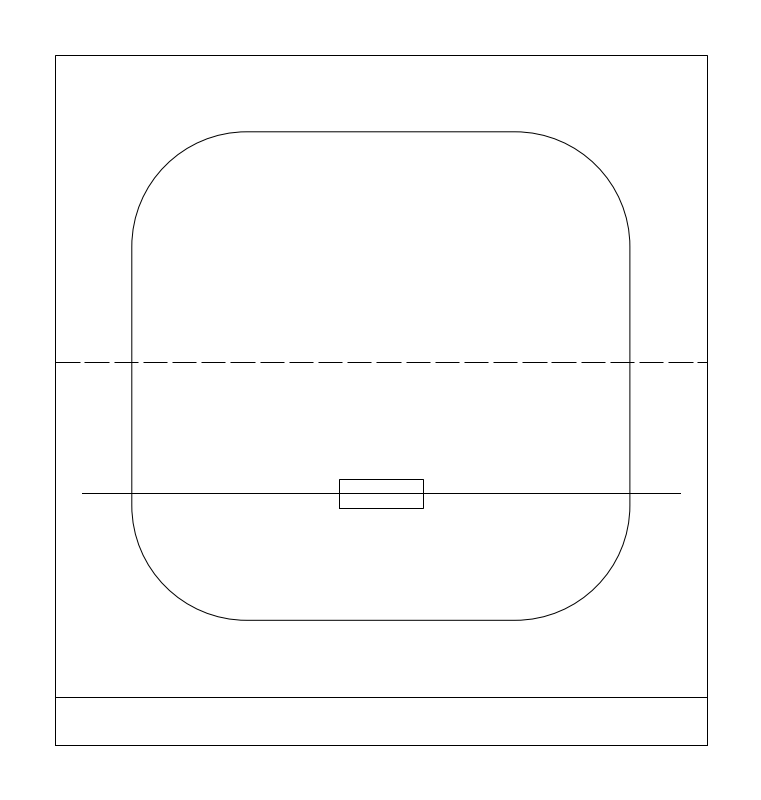

| Plan footprint (W x H) | 34in x 36in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-left corner on wall line (deployed; folded outline dashed) |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 34in | 30in–40in |
| Depth | 36in | 30in–40in |
| Folded Depth | 20in | 16in–24in |

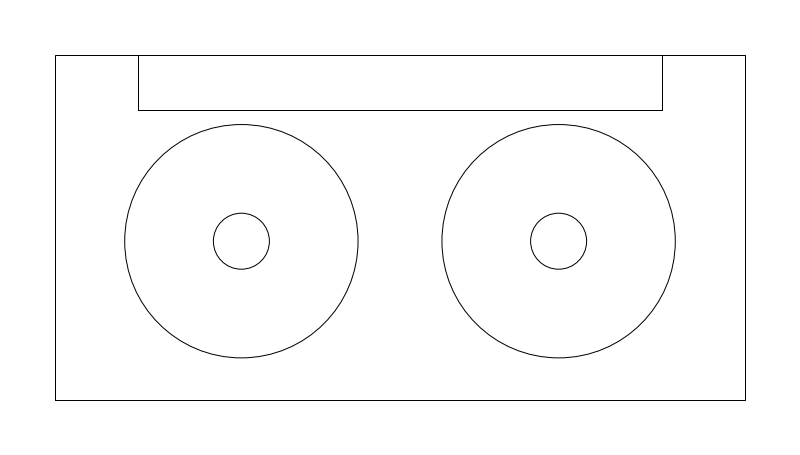

| Plan footprint (W x H) | 12in x 6in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-center of the dispenser on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 12in | 6in–18in |
| Depth | 6in | 4in–8in |
| Rolls | 2in | 1in–3in |

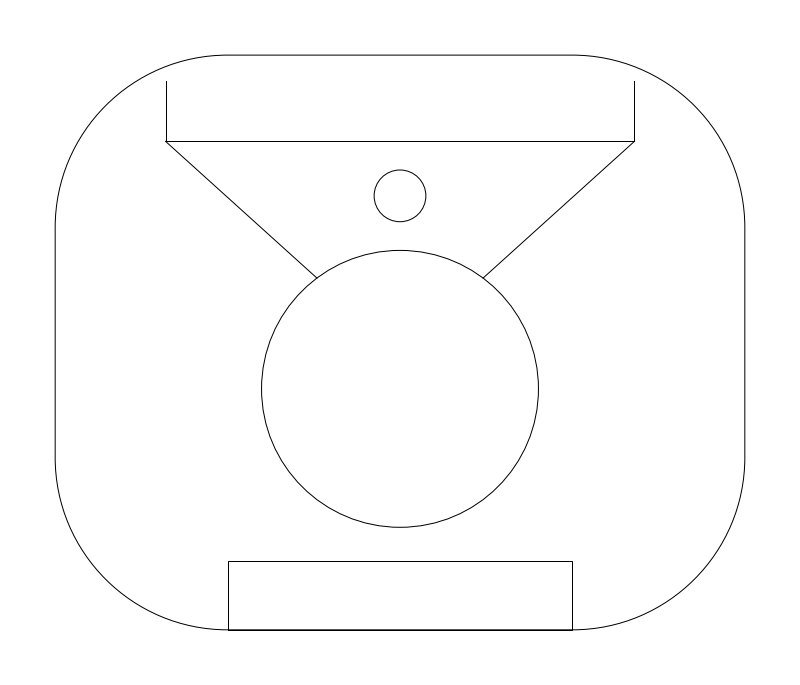

| Plan footprint (W x H) | 12in x 10in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-center on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 12in | 9in–14in |
| Depth | 10in | 7in–13in |

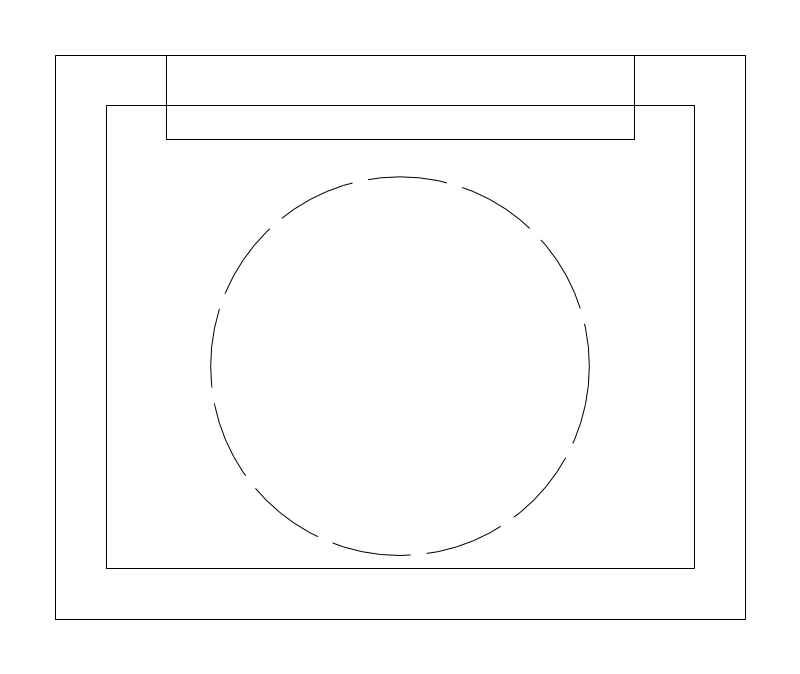

| Plan footprint (W x H) | 11in x 9in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-center on wall line |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 11in | 8in–14in |
| Depth | 9in | 7in–12in |
| Plan footprint (W x H) | 3.4in x 18in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-center on wall line (42 in high; the height is in the note) |
| Parameter | Default | Range / options |
|---|---|---|
| Depth | 18in | 12in–24in |
| Thickness | 1in | 0.75in–2in |
| Plan footprint (W x H) | 6in x 1in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Insertion datum | back-center on wall line (ADA 703.4 puts it on the LATCH side at 48-60 in to the baseline; both facts are in the note) |
| Parameter | Default | Range / options |
|---|---|---|
| Width | 6in | 4in–12in |
| Depth | 1in | 0.5in–2in |
Standards are listed for drafting context only. A symbol drawn to a convention is not a compliance determination - verify against the governing code and the specified product. See the license and terms.
Mirror, changing table, dispensers and dryer, each with its ADA figure carried where a specifier will find it. Open one in the editor or take the DXF.
