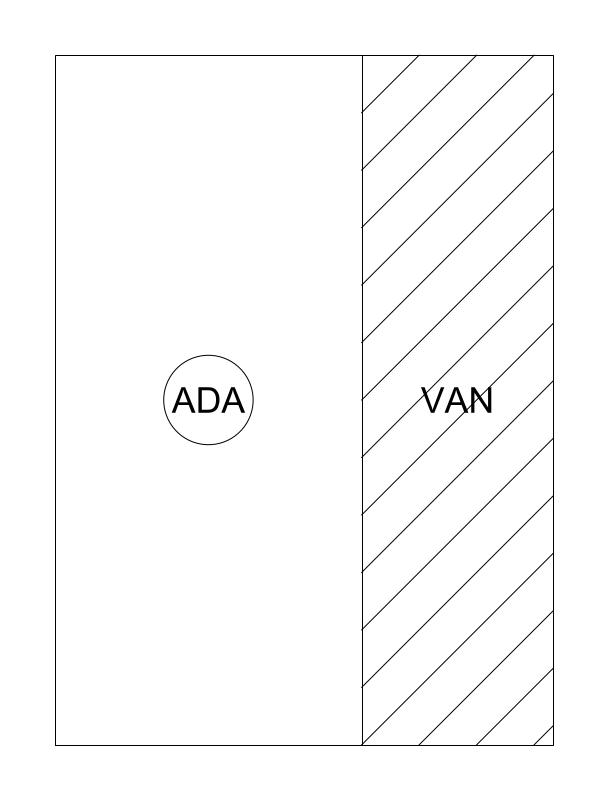

Standard Parking Stall is an ADA-compliant accessibility element, drawn to scale in inches and delivered as a ready-to-insert DXF you can drop into any drawing. At its default parameters the plan-view footprint is 108in × 216in. It is parametric — adjust count, stall w and stall len before or after you place it. Tagged for Commercial and Site work in the Commercial ADA library. Free to download and free to use — no email gate, no symbol-pack invoice.
Direct download — no email, no account. DXF R2018, drawn in inches.
| Plan footprint (W × H) | 108in × 216in |
|---|---|
| Units | inches |
| DXF version | R2018 |
| Category | Commercial ADA |
| File size | 54 KB |
Insertion datum: near-left corner of first stall. Place it against that reference and the block lands aligned to your drawing.
| Parameter | Default | Range / options |
|---|---|---|
| Count | 1in | 1in–20in |
| Stall W | 108in | 96in–120in |
| Stall Len | 216in | 180in–240in |
Adjust parameters live inside the editor — open this block in CADdillo.
